Steel connector plates, built to last.
Core Connectors LLC manufactures heavy-timber post bases, connector plates, truss plates, splice plates, and steel hardware for timber framing and outdoor structures. Retail pricing is published here. Orders are fulfilled through authorized dealers.
Retail pricing is public. Orders flow through dealers.
Browse the full Core Connectors line below with current suggested retail pricing. Build a list, then confirm freight, taxes, lead time, and availability with your authorized dealer — they place the order. Ships UPS or LTL from Henderson, TN. Most orders ship within the week; bulk lead times vary.
The full line, searchable.
Search by part number or description. Filter by category. Sort by part #, product, or retail price. Pricing reflects 2026 suggested retail; freight and dealer services vary.
Truss Plating
| Part # | Product | Application | Size / Pitch | Weight | Retail | Actions |
|---|---|---|---|---|---|---|
| CPST | Strap Plate | Flat connector plate for inline reinforcement and structural tie applications. | NA | 2 lbs | $15.64 | |
| CPCF6 | Crow's Foot Plate | Truss bottom connection plate tying center pin, webs, and bottom chord together. | 6" | 11 lbs | $138.00 | |
| CPCF8 | Crow's Foot Plate | Truss bottom connection plate tying center pin, webs, and bottom chord together. | 8" | 12 lbs | $161.92 | |
| CPCN-412 | Corner Plate | Pitch-specific truss corner connection plate for timber framing applications. | 4/12 pitch | 7 lbs | $82.80 | |
| CPCN-512 | Corner Plate | Pitch-specific truss corner connection plate for timber framing applications. | 5/12 pitch | 7 lbs | $82.80 | |
| CPCN-612 | Corner Plate | Pitch-specific truss corner connection plate for timber framing applications. | 6/12 pitch | 7 lbs | $82.80 | |
| CPCN-812 | Corner Plate | Pitch-specific truss corner connection plate for timber framing applications. | 8/12 pitch | 7 lbs | $82.80 | |
| CPCN-912 | Corner Plate | Pitch-specific truss corner connection plate for timber framing applications. | 9/12 pitch | 7 lbs | $82.80 | |
| CPCN-1012 | Corner Plate | Pitch-specific truss corner connection plate for timber framing applications. | 10/12 pitch | 7 lbs | $82.80 | |
| CPPP6-412 | Peak Plate | Pitch-specific peak connection plate for truss ridge alignment and reinforcement. | 4/12 pitch, 6" | 6 lbs | $51.52 | |
| CPPP6-512 | Peak Plate | Pitch-specific peak connection plate for truss ridge alignment and reinforcement. | 5/12 pitch, 6" | 6 lbs | $51.52 | |
| CPPP6-612 | Peak Plate | Pitch-specific peak connection plate for truss ridge alignment and reinforcement. | 6/12 pitch, 6" | 6 lbs | $51.52 | |
| CPPP6-812 | Peak Plate | Pitch-specific peak connection plate for truss ridge alignment and reinforcement. | 8/12 pitch, 6" | 6 lbs | $51.52 | |
| CPPP6-912 | Peak Plate | Pitch-specific peak connection plate for truss ridge alignment and reinforcement. | 9/12 pitch, 6" | 6 lbs | $51.52 | |
| CPPP6-1012 | Peak Plate | Pitch-specific peak connection plate for truss ridge alignment and reinforcement. | 10/12 pitch, 6" | 6 lbs | $51.52 | |
| SN6 | Splice Plate - Nominal | Structural splice plate for joining timber members in-line. | 6" x 32" | 10 lbs | $57.60 | |
| SR6 | Splice Plate - Rough Cut | Structural splice plate for joining timber members in-line. | 6" x 32" | 11 lbs | $60.80 | |
| SN8 | Splice Plate - Nominal | Structural splice plate for joining timber members in-line. | 8" x 36" | 18 lbs | $67.20 | |
| SR8 | Splice Plate - Rough Cut | Structural splice plate for joining timber members in-line. | 8" x 36" | 20 lbs | $70.40 |
Additional Plating
| Part # | Product | Application | Size / Pitch | Weight | Retail | Actions |
|---|---|---|---|---|---|---|
| CPT1 | Small T | General-purpose tee plate for post-to-beam and beam intersection connections. | NA | 3 lbs | $19.32 | |
| CPT2 | Standard T | General-purpose tee plate for post-to-beam and beam intersection connections. | NA | 5 lbs | $35.42 | |
| CPL1 | Small L | General-purpose angle plate for corner reinforcement and timber connections. | NA | 3 lbs | $18.03 | |
| CPL2 | Standard L | General-purpose angle plate for corner reinforcement and timber connections. | NA | 5 lbs | $33.49 | |

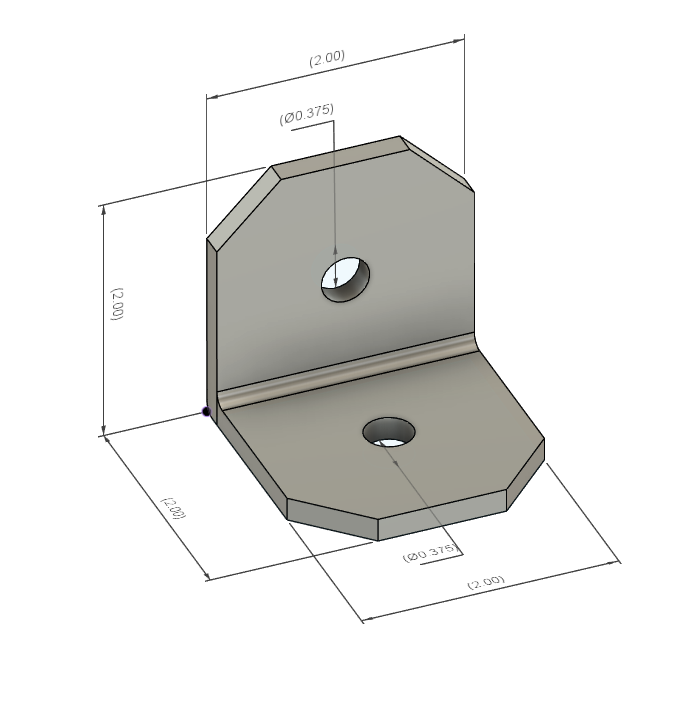

| CPA1 | Small Angle | Reinforcing angle for structural corner and bracing connections. | NA | 1 lb | $6.90 | |

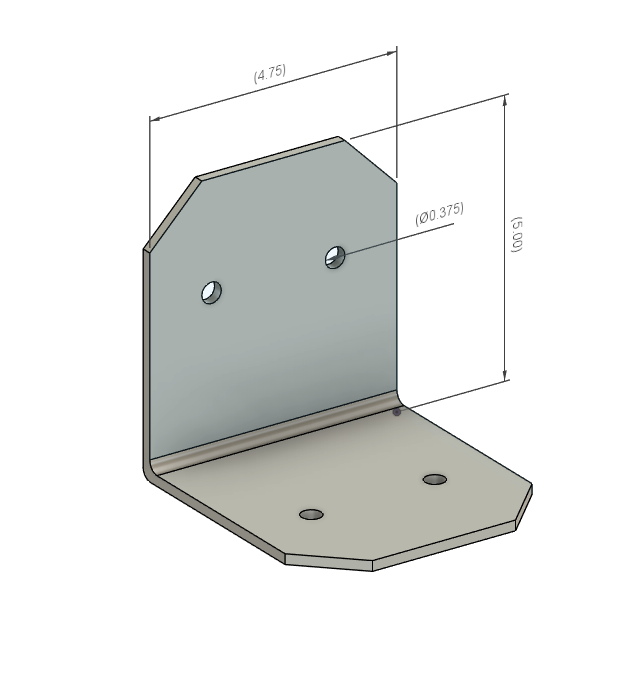

| CPA2 | Standard Angle | Reinforcing angle for structural corner and bracing connections. | NA | 2 lbs | $17.02 | |
| CPHT | Universal Hurricane Tie | Uplift restraint tie for securing rafters or trusses to supporting members. | NA | 1 lb | $7.27 |
Post Bases
| Part # | Product | Application | Size / Pitch | Weight | Retail | Actions |
|---|---|---|---|---|---|---|
| PB6N | 6x6 Nominal Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 8 lbs | $90.16 | |
| PB8N | 8x8 Nominal Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 14 lbs | $95.68 | |
| PB6R | 6x6 Rough Cut Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 10 lbs | $90.16 | |
| PB8R | 8x8 Rough Cut Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 16 lbs | $95.68 | |

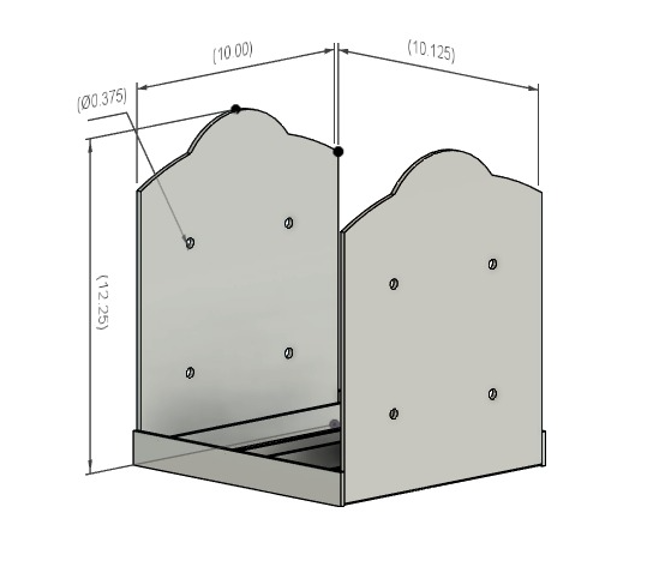

| PB10R | 10x10 Rough Cut Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 22 lbs | $147.20 | |

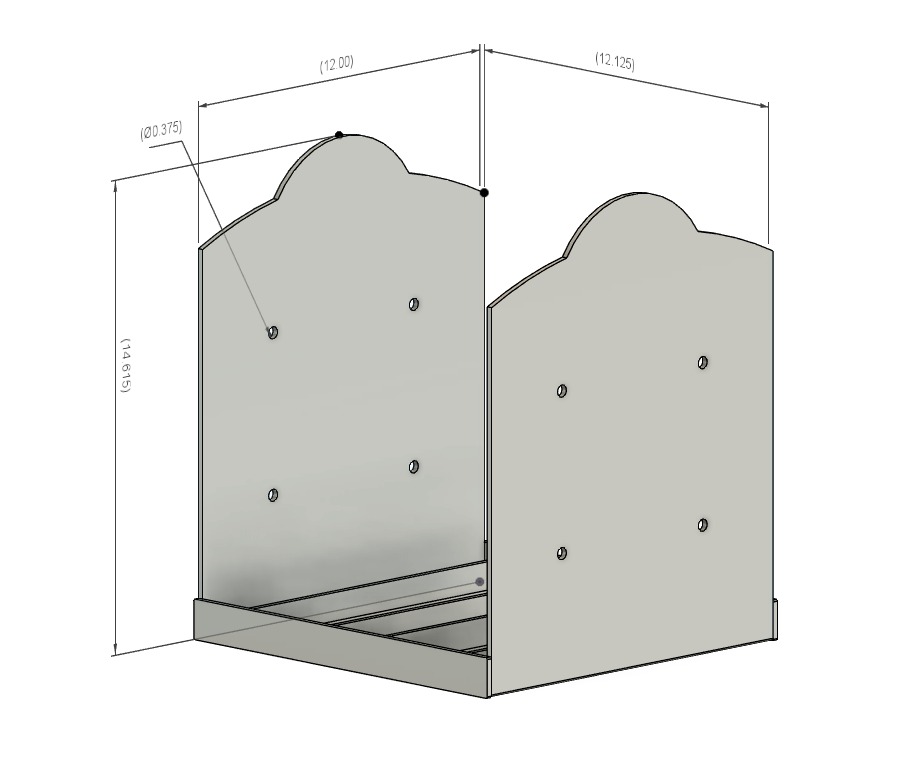

| PB12R | 12x12 Rough Cut Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 24 lbs | $184.00 | |
| PB6WN | 6x6 Wet-Set Nominal Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 15 lbs | $145.36 | |
| PB8WN | 8x8 Wet-Set Nominal Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 21 lbs | $182.16 | |
| PB6WR | 6x6 Wet-Set Rough Cut Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 17 lbs | $145.36 | |

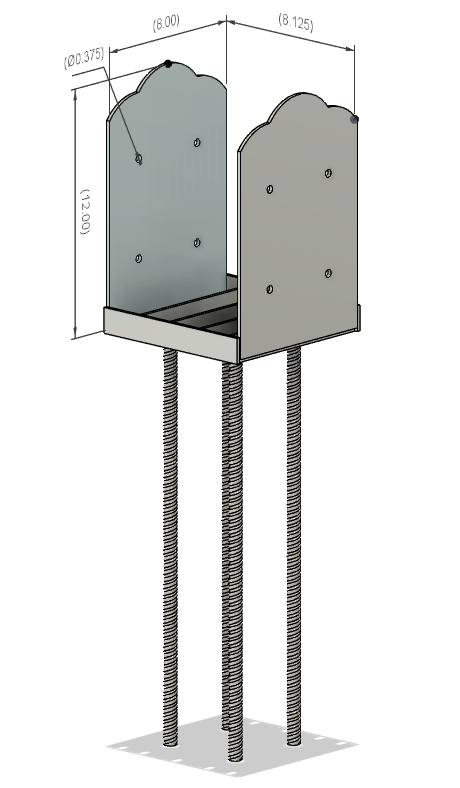

| PB8WR | 8x8 Wet-Set Rough Cut Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 23 lbs | $182.16 | |

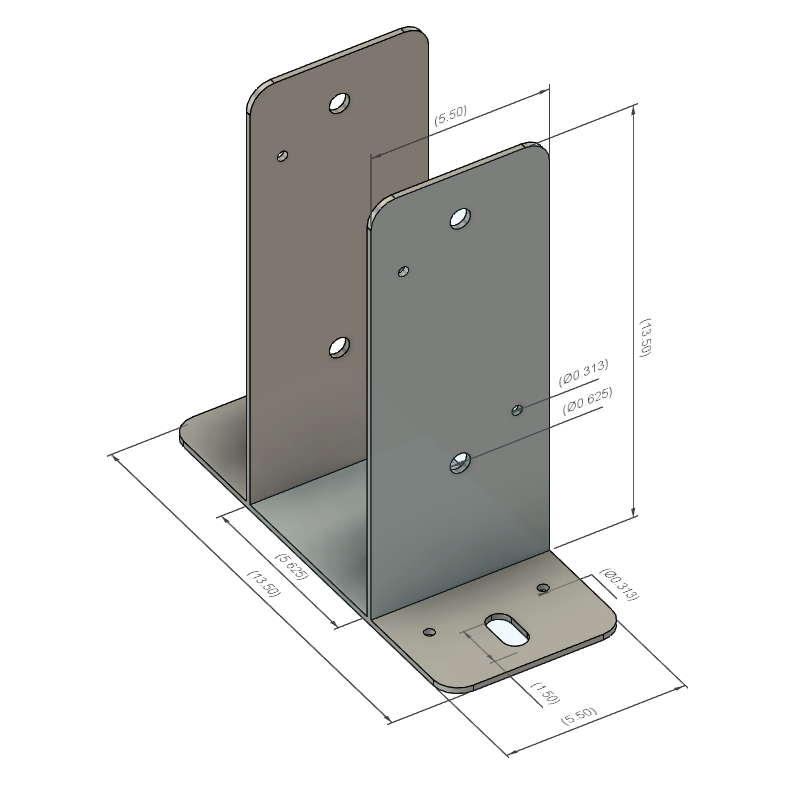

| PB6AN | 6x6 Outside Anchor Nominal Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 16 lbs | $126.96 | |
| PB8AN | 8x8 Outside Anchor Nominal Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 22 lbs | $163.76 | |

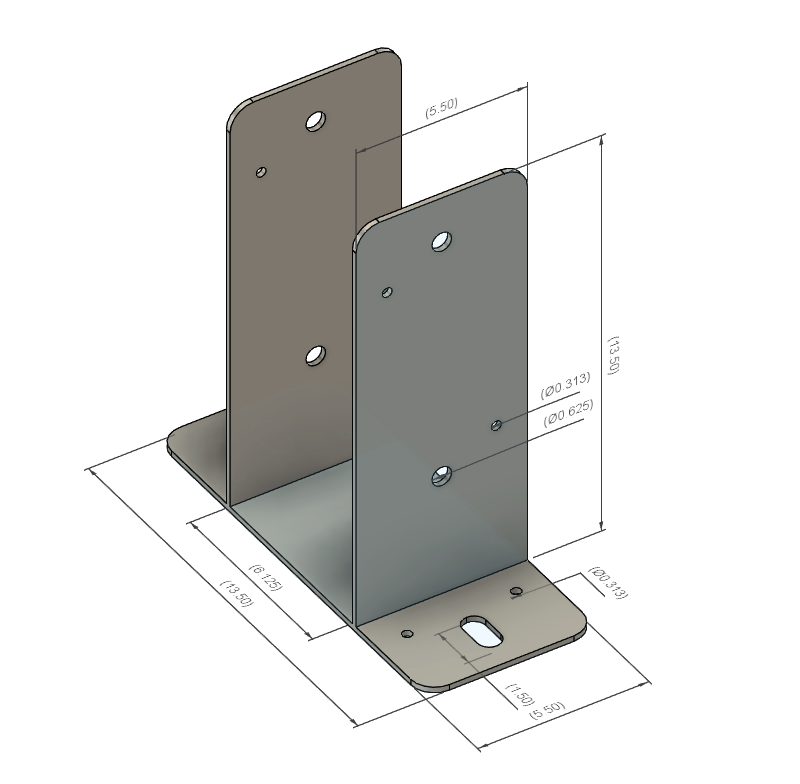

| PB6AR | 6x6 Outside Anchor Rough Cut Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 16 lbs | $126.96 | |
| PB8AR | 8x8 Outside Anchor Rough Cut Post Base | Heavy-duty steel base for anchoring timber posts to concrete or other supporting surfaces. | NA | 22 lbs | $163.76 | |

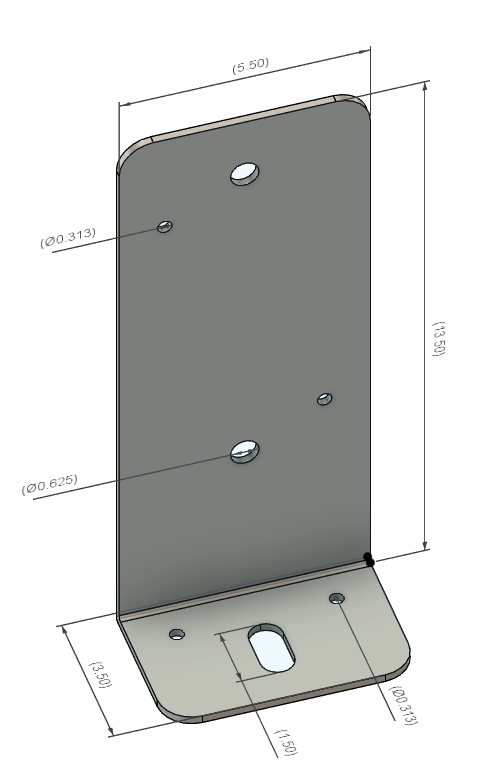

| CB6A | Outside Corner Bracket | Corner support bracket designed for outside-anchor post base applications. | NA | 8 lbs | $71.76 |
Retail prices shown are product prices only unless otherwise quoted. Freight is calculated by shipment size and distance from Henderson, TN 38340. Most orders ship within the week — confirm final pricing, lead time, and availability with your authorized dealer before placing an order.

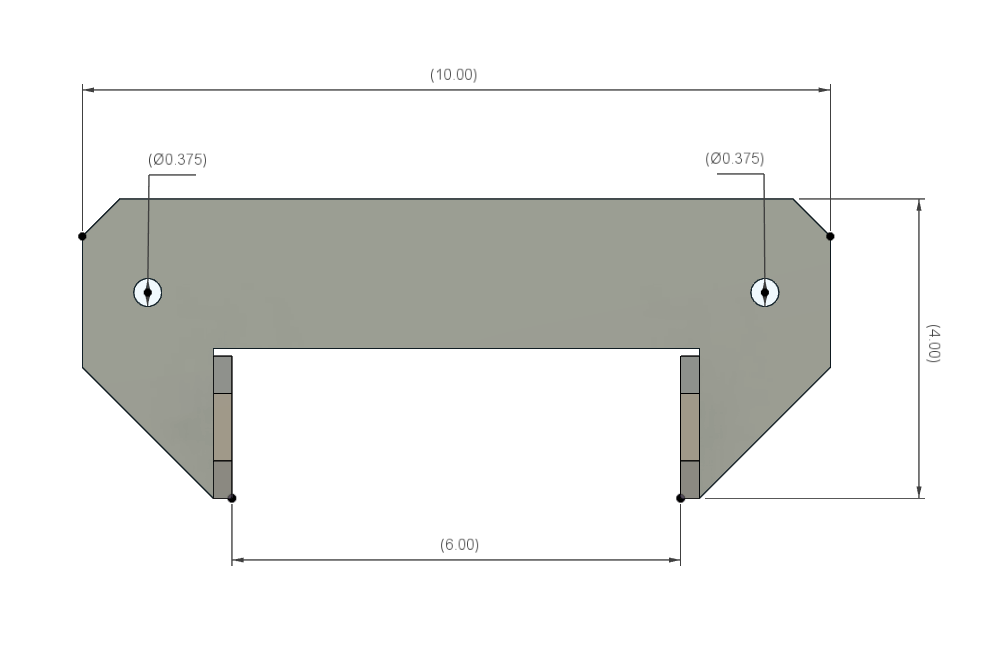

Drawings & photography.
Visual reference for select Core Connectors parts. The full drawing index is included in the downloadable retail catalog.
Where Core Connectors show up.
How to order Core Connectors plates.
Use the catalog above to identify part numbers and quantities, then submit a quote request. If you're not sure which plates you need, send us drawings or a material list and our team will help scope it.
Choose Your Plate Type
Post bases, truss plates, L plates, T plates, angles, straps, hurricane / rafter ties, and splice plates. The catalog filters by category.
Confirm Timber Size
Note whether your material is nominal, actual, rough-sawn, or custom-sized. Plate pockets and bolt patterns are sized for specific timber dimensions.
Select Quantity
Count posts, trusses, rafters, splice locations, and connection points. When in doubt, send your drawings and we'll help confirm counts.
Confirm Finish
Standard black finish ships from stock where applicable. Custom finishes are available by quote.
Shipping Method
Smaller orders may ship parcel. Larger or heavier orders may require LTL freight. Freight is quoted based on weight and destination ZIP.
Need Help?
Send drawings, photos, sketches, or a material list and the TFS / Core Connectors team can help determine the plates you need.
Steel plate quote request.
Tell us what you know — part numbers, quantities, timber sizes — and our team will confirm pricing, freight, and lead time. Don't worry about getting every field filled; the notes box is fine.
Already working with an authorized dealer? Send them your list and they can place the order on your behalf.
Interested in selling Core Connectors products?
Lumber yards, building supply stores, contractors, and outdoor-living retailers can apply for the Core Connectors dealer program. Approved dealers receive wholesale pricing, a dealer-only catalog, and access to the dealer portal.
Apply to Become a DealerPlan a structure that outlives you.
Tell us about your site. We'll come back with a preliminary kit scope and budget within one business day.
- 01Cypress, Cedar, or Southern Yellow Pine — pre-cut & pre-fit
- 02In-house steel connector plates (powder coat or DTM)
- 03Palletized & freight-shipped nationwide
